Whenever someone is thinking of going for a Low Cost Mineral Water Plant, there can be 2 -3 ways :
Starting a low budget mineral water plant , with ISI
Starting an RO Plant with Chiller , without ISI
Starting a Mineral Water Business, with someone else’s production unit
Starting a Low Budget ISI Water Plant
Starting an ISI Water Plant requires you to be aware of Mineral Water Plant License Cost. It means installing all machinery confining to the B.I.S. Standards as per IS-14543, which is the standard set for Packaged Drinking Water (Technical Name for otherwise called “Mineral Water”). The cost of such a plant will include the cost of lab, Filling Machine, Plastic PET Blow Machine and plant construction as per ISI.
Going for Low Budget is actually going for a small scale mineral water plant. You will need to cut down the Mineral Water Plant Machinery Cost. For Example, instead of going for a 60 BPM machine you can go for a 24 BPM machine, or you can totally avoid the Bottles Manufacturing. In such a case, you can go for a small Jars Plant or Pouches Plant (if permissible in your state). If you are going for all 3 varieties like Bottles, Jars & Pouch; and still want to have a low cost mineral water plant, then you may need to get the bottles manufactured by some other source. This can cut the investment size-ably. Check the plastic pet bottle blowing machine price to know this. You can refer to the BIS website for the BIS rules & can also refer to the Cost Article to get more ideas on an ISI RO Plant Project Cost.
Can RO Plant with Chiller be the Option ?
Chilled Water Non ISI Jars
People often confuse these type jars with the BIS approved 20 Ltr Transparent Jars, also called as “Bubble Tops”. There will be huge difference between a 20 Ltr Jar Mineral Water Plant Price (ISI) & an RO Plant with Chiller Price in India. As the former confine to ISI standards and the latter doesn’t. RO Plant with Chiller is NOT covered under the BIS premise, hence you always run a risk of your unit getting sealed, though clear policy is still to arrive.
Starting a Mineral Water Business with Someone else’s Production Unit
This means you will just own the brand, do marketing & someone else with a valid BIS license & production facilities will produce the bottles or Jars for you. This will save you from Mineral Water Plant Machinery Cost, Mineral Water Plant License Cost and you can be perfectly achieving your goal :- Having a low cost mineral water plant project.
This is also referred as “Co-Packing” Business. A new term emerging. It can be started with a very low investment compared to a manufacturing unit. You can refer to the special Playlist we have created on our Youtube Channel. We also offer consultancy for this called as “Tri-Party Consultation“.
Having own , even a small water bottling plant is always an edge over getting it done from outside. But this can be a viable solution for those who wish to start with a very small budget. Look at the following success story :-
As of January 2026, the regulatory landscape for bottled water has shifted. With the removal of mandatory BIS certification, Packaged Drinking Water is now classified under the FSSAI High Risk Food Category. Though there is not much change in the layout; however, equipment hygiene will be top priority in the High-Risk Category audits of the Fssai. We shall walk you through the Layout Design process.

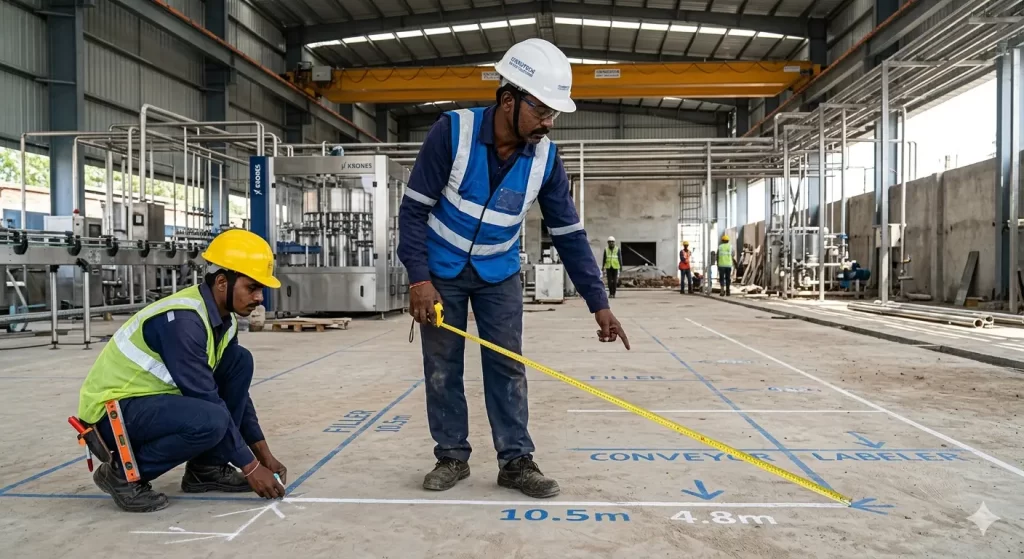

A Packaged Drinking Water Plant Layout design is a critical milestone in your project setup. In 2026, it serves as more than just a floor plan; it is a strategic tool to improve overall plant efficiency and ensure compliance with the FSSAI High Risk category standards.
Did I Forget to Mention This ?
Do not demarcate your Factory Plot Size yet
Before creating a proper lay-out, it’s not advisable to build your shed & mark boundaries of your allocated Plot. This will ultimately also decide how much land you require for the plant ( dedicated post )
With the transition from mandatory BIS to FSSAI-led audits, your layout must now strictly adhere to Schedule IV hygiene norms. A well-planned design prevents cross-contamination, optimizes man-material movement, and ensures your facility is audit-ready for mandatory pre-license inspections.
Below, we break down the design process into 4 Technical Steps to help you achieve a balance between operational flow and regulatory excellence.
Before a single brick is laid or a machine is ordered, you must define the “Operational Core” of your project. In the current FSSAI High Risk environment, your capacity dictates your mandatory testing frequency and your floor space requirements.
Key Considerations for 2026:
The 3-Zone Separation: Unlike older designs, 2026 standards require a strict physical separation between the Raw Water/Pre-treatment Zone, the High-Hygiene Filling Zone, and the Packaging/Dispatch Zone. Your layout must clearly demonstrate this “one-way flow” to pass a pre-license inspection.
Reverse Engineering for Efficiency: Start with your target output (e.g., 2000 LPH). Calculate the total “Footprint” of the machines plus a mandatory 2.5 to 3 feet of free space around each unit for maintenance and “Sanitary Access.”
Expansion Scalability: A layout that is too tight is a financial liability. We recommend designing for 20% more space than your current machinery requires to allow for future upgrades without breaking FSSAI structural norms.
The “Strategic Readiness” Checklist:
Water Source to Product Flow: Does the water move in a straight or U-shaped line without crossing back over itself?
Floor Slope and Drainage: Does your layout account for specialized industrial drains in the “Wet Zones”?
Human-Material Conflict: Are your staff entry points separate from your raw material (bottles/caps) entry points?
Step 2: Machinery Dimensions & The “Human Fatigue Factor”
Once your capacity is fixed, the layout must be reverse-engineered based on the actual physical footprint of your equipment. A common mistake is measuring only the machine itself; you must account for the “Operational Envelope”—the space required for a human to interact with that machine safely.
During our 10-day training program, we walk you through a live calculation to arrive at your exact machinery specs. This ensures your layout isn’t just a drawing, but a technically sound blueprint for your specific production goals.
Key Engineering Considerations:
The Maintenance “Service Zone”: Every machine (especially the water treatment and the Filling section ) requires a minimum of 2.5 to 3 feet of clear space on all sides. This ensures that your maintenance team can reach the motors and filters without moving other equipment—a key requirement for Strategic Readiness.
Human-Machine Interface (HMI) Access: Position your control panels so they are easily accessible without the operator having to cross over conveyor lines. In a high-speed environment, every extra step an operator takes contributes to “Human Fatigue,” which directly impacts your ROCE through downtime and errors.
Vertical Space & Piping: Don’t just think in 2D. Your layout must account for overhead piping and electrical trunking. In the FSSAI High Risk category, open overhead wiring is a major non-compliance. Your layout should plan for “Clean-in-Place” (CIP) pipe routing that doesn’t obstruct movement.
“I often see entrepreneurs try to fit a 2000 LPH plant into a 1000 sq. ft. room. While it fits on paper, the ‘Fatigue Factor’ kills the business within six months. A cramped plant is a high-cost plant. Give your machines—and your people—room to breathe.”
Step 3: Designing Man-Material Movement (The Hygiene Logic)
A professional layout must act as a one-way street. The primary goal of this step is to ensure that “Man” (operators) and “Material” (raw inputs and finished goods) move through the plant without ever creating a risk of cross-contamination. This is a core requirement for Schedule IV compliance.
Key Considerations for High-Risk Audits:
The “One-Way” Flow: Raw water enters at one end, and finished, palletized cases exit at the other. There should be no “back-tracking.” In our consultancy, we call this the Linear Efficiency Model—it reduces both contamination risks and power consumption.
Segregated Entry Points: Your operators should enter through a dedicated “Change Room” with hand-sanitization stations. Raw materials (like preforms,caps, labels) should have a separate entry hatch. This physical separation is what auditors look for in the High Risk category.
Waste Management Zones: Your layout must include a dedicated, isolated area for “Rejects” and “Scrap.” Placing your scrap bin near the filling line is a major non-compliance in 2026. This has to be necessarily out of the packaging area.
The Human Fatigue Factor (Movement): Minimize the distance an operator has to walk to perform a routine check. Every meter of unnecessary movement is “Lost Time” that eats into your ROCE.
The Strategic Readiness Tip:
“A layout that looks good on paper but forces an operator to walk through a ‘wet zone’ to reach a ‘dry zone’ is a failure. We design for Microbial Safety first, and speed second. This is how you pass an FSSAI pre-license inspection on the first attempt.”
Step 4: Final Machinery Placement & FSSAI High-Risk Compliance
In this final stage, we translate the “Logic” of Steps 1-3 into a precise, dimensioned floor plan. This isn’t just a drawing for your contractor; it is a legal document required for your FSSAI High-Risk license application and the mandatory pre-license inspection.
The Final Compliance Checklist:
The “Sanitary Wall” Separation: Your layout must show a physical partition (glass or aluminum) between the Bottling Hall (filling) and the Water Treatment Plant. In 2026, keeping them in the same open hall is a major non-compliance for the High-Risk category.
Drainage Slope & Coving: Your drawing should specify that all floor-to-wall joints are Coved (rounded). This prevents bacterial growth in corners—a detail often missed by general architects but caught by FSSAI auditors.
Utility Routing (Air & Power): Ensure that your air compressor and electrical panels are placed in “Dry Zones” away from the filling line. Steam and water lines should be routed to minimize “condensate drip” over open bottles.
Audit-Readiness (The Buffer Zone): Always leave a “Buffer Zone” at the end of the line for final inspection and Shrink Wrapping. A cramped dispatch area leads to pallet damage and logistics bottlenecks, directly impacting your financial sustainability.
“We always tell our mentees: Do not start civil work until your layout is frozen. Changing a partition wall or a drain pipe after it’s built is ten times more expensive than changing a line on a drawing. Strategic readiness means getting it right on paper first.”
How to Upload Your Completed Layout to the FSSAI FoSCoS Portal
Once your technical 4-step layout is finalized, the next hurdle is the FSSAI FoSCoS application. While the portal provides a generic sample document, it often lacks the technical detail required for a High Risk water plant inspection.
In the video walkthrough below, I demonstrate the exact process of uploading your layout to FoSCoS, highlighting where to include your machinery specs and flow diagrams to ensure your application is audit-ready.
How to Get Exact Machinery Dimensions for Your FSSAI Layout
A common mistake is waiting until the plant is built to measure your machines. For a successful FSSAI FoSCoS application, you need these dimensions before you finalize your blueprint.
When you receive a quote from your machinery suppliers, do not just look at the price. Request a Technical Specification Sheet that includes the exact length, width, and height of each unit and also the Connected Power Load in HP/KW (Water Treatment, Filling, Secondary Packaging, Bottle Blowing Sections).
Why this data is mandatory for 2026 Compliance:
Audit-Ready Blueprints: FSSAI FSO’s ( Food Safety Officers ) now look for “Operation-wise area allocation.” If your machinery list says a machine is 2 meters long, but your layout only shows 1 meter of space, your license could be delayed.
The “Man-Material” Logic: Having exact dimensions allows you to prove there is enough “walking space” to prevent cross-contamination—a key requirement for the High Risk category.
FoSCoS ‘Machinery List’ Requirement: On the portal, you must upload a specific list that includes the Number of Units, Installed Capacity, and Horsepower(HP) (and KW possibly) used.
Check through this Video, how to upload the List of Machines on FSSAI portal
The Strategic Advantage of Direct Machinery Procurement
Many new entrepreneurs fall into the “Single-Source” trap, where they buy an entire plant from a single turnkey contractor. While this seems convenient, it often results in higher costs and lower control over the quality of individual components.
In 2026, the most successful water plants are built using a Direct Procurement Model. Instead of a bundled package, you can source specialized machines individually from high-quality manufacturers—often through direct internet research and supplier audits.
Why “Buying Direct” Wins in 2026:
Major Cost Savings: You eliminate the 15%–30% markup typically added by middleman contractors.
Superior Quality Control: You can choose a high-end filling machine from one specialist and a heavy-duty RO system from another, ensuring every part of your plant is “Best-in-Class.”
Direct Warranty & Service: You hold the original manufacturer’s service agreement, ensuring faster repairs and cheaper spare parts in the long run.
How to Synchronize Individual Machines
The challenge of buying individually is ensuring that every machine fits your FSSAI High Risk layout and works in perfect harmony. This is where technical synchronization is required to avoid capacity bottlenecks.
Get Expert Help with Your Selection: If you are sourcing machines individually, we provide a specialized Consultancy. Check our Consultancy Page. We help you verify technical specs, audit supplier credibility, and ensure your entire plant meets 2026 regulatory standards while saving you lakhs in procurement costs.
Conclusion: Designing for the Future of Bottled Water
A Packaged Drinking Water Plant Layout is no longer a static drawing; it is a dynamic operational strategy. With the 2026 shift to the FSSAI High Risk category, your layout is your first line of defense against regulatory non-compliance and operational inefficiency.
By following these four steps—determining capacity, calculating footprints, mapping one-way flow, and finalizing placement—you ensure that your plant is not just built, but engineered for success. Remember, Strategic Readiness starts on the drawing board. If you prioritize hygiene and “Man-Material” logic now, you save lakhs in future modifications and audit penalties.
Need a Professional Review? If you have a draft layout and want to ensure it meets the latest 2026 FSSAI High Risk norms, join our Orientation + Aqua Finance Metrix session. We’ll analyze your floor plan for technical accuracy and financial sustainability.
Most Common FAQs
1. Why is the plant layout important for a mineral water business?
A well-planned layout does more than just place machinery; it is a critical tool for improving overall plant efficiency. It ensures proper hygiene, meets regulatory standards, and minimizes human fatigue by optimizing the movement of staff and materials.
2. How do I determine the right plant capacity for my layout?
Instead of relying solely on machinery suppliers, you should use reverse engineering. Start with a market survey to identify what you will sell (e.g., 20-liter jars, 1-liter bottles, or 500ml sizes) and the expected daily volume. This production plan will dictate your actual plant capacity.
3. What role do BIS norms play in designing the layout?
The Bureau of Indian Standards (BIS) provides specific guidelines on space allocations and hygiene maintenance. Adhering to these norms is essential for licensing and ensures that the facility design prevents contamination during the production process.
4. What is “Man-Material Movement” in plant design?
This refers to the flow of workers and raw materials throughout the plant. An effective layout reduces unnecessary to-and-fro movement, which preserves worker energy levels and maintains a streamlined production process from water treatment to packaging.
5. Can I use a sample plant layout for my own facility?
While sample layouts provide a helpful visual reference, they should not be copied exactly. Every plant has unique dimensions and specific production goals. It is better to learn the layout techniques professionally to ensure your design fits your specific business needs and site constraints.
If you are looking for Loan for Mineral Water Plant …
First, Correct your vocabulary
Why am I saying this ? It’s because generally you may say “Mineral Water Plant“, however, technically you should really mean that. There are 2 technical terms for this …
Packaged Natural Mineral Water and
Packaged Drinking Water ( Other than Packaged Natural Mineral Water )
These standards are set by the B.I.S. ; the body which issues an “I.S.I.” license to anyone who wants to sell Bottled Water in India. Hence it is very important for you to say this correctly. You should know first whether you are going to do a business in which of the 2 kinds of Bottled Water. All other kind of Bottled Water (Like Flavoured Water) are still not under the B.I.S. framework ; hence I won’t talk about that.
It is very important to talk correctly about the product for which you will be asking for a loan. The officers sitting at the opposite desk judge you by various methods. This is fundamental. It tells them that you have done sufficient groundwork.
How much Loan you need for your Mineral Water Plant ?
Exactly how much is the amount you will require for your mineral water plant is the Total Investment for this project. This is the Capital Investment, the money you require towards the machinery, land and other permanent establishments, one time.
Another type of amount which you might require is the ongoing kind of money for various needs such as day to day purchases & consumables, salaries, overhead expenses, fiscal expenses like Bank EMI, interest, Legal expenses and much more. This will be the Working Capital.
(# Please read a special article written on Cost Components to know more)
Once you are clear about these, you can draw your own financial projections. For this, you can take help from any financial consultant like a C.A. or some voluntary organizations like the B.Y.S.T. (in Pune, Hyderabad, Chennai) or De Asra (In Maharashtra only). The consultants will charge you more in comparison to these organizations, however, a consultant makes it specially for you.
What kind of report can you get from them
Usually people go for “Project Report” which is a very popular term for the Bankers. These consultants will offer you a project report for your Mineral Water Plant. A Project Report is a statement which tells the Bankers , on exactly
How Much money the proposer wants ,
and how is he going to Repay the same, in a stipulated time,
and indirectly this also tells the bank, exactly how much money they will make from this, in form of Interest (which is the Banker’s Business)
In other words, the project report is a sales document for the entrepreneur and not just a “yet another legal document“.
It tells you how much money your business will make
First, it tells you exactly how much money your business will make from your proposed project. From this money, you will pay the Interest on the Loan for your Mineral Water Plant. Hence bankers will see first, whether your project really is capable of doing so. For you it may be the first time of setting up a Bottled Water plant; but for bankers, it’s an everyday affair. They might have seen many more cases than yours and the might be driven by some prejudices about this industry itself.
Your Document needs to convince them
The Project Report which you will take to the bankers, will need to convince the bankers that …
The Industry is growing
How your business is going to generate profits
How will the banker benefit
To do this, how much exact amount you require
Your inputs for making the project report are vital
The Consultant agency or an individual practitioner is not an expert in the industry domain i.e. Packaged Drinking Water. It’s you whose inputs will be required while preparing the project reports. So, it’s important that you should collect all this necessary information prior to going to these people.
How can you get these details ?
Searching the suppliers online & approaching them individually 1 by 1
Asking one of the existing plant owner & getting them
Yes, you actually will need to do a lot of legwork before you actually start going to a bank etc. However, a direction can be had by some experts in this domain like what we run a live training on “Idea to Actualization of a packaged Drinking Plant“. In this most of your initial doubts will get clarified. Since 2015, we have been conducting this, and there are many success stories. During this we do have a special session on “Cost Comparison” of various plant types & also train the participants on how to arrive at the capital cost exactly. Do check the next training & attend that.
Bankers will never fund the entire amount. You will need to be ready with your own contribution. Usually 25-30 %. There are many agencies like the SIDBI, which helps you in the seed capital. Meaning, they will fund some 10% in the own capital (redcing your burden by 10%).
Get Ready with Collateral Security & Guaranteer
Collateral Security is some part of asset which you can pledge with the bankers till the tenure of your loan. Once you repay, it’s freed. For this, the consultants will help you a lot.
Guaranteer is a physical person, who knows you well, and stands guarantee that you will repay the loan and if not paid, Bank can collect the EMI or the interest from you.
(This sounds little harsh, but why will someone unknown fund you ? He will, provided he gets assurance besides the profit assurance by the Project Report.)
There are schemes where you don’t require a security or a Guaranteer
True. There are certain schemes from the GOI where you don’t require both of these or at least can skip the guaranteer. A Scheme called CGTMSE is already in place and many other schemes by the GOI. The institutions like the BYST will help you in getting that.
Look for Subsidy issued by the Govt Schemes
Subsidy is some kind of encouragement given in form of some fiscal benefit to the entrepreneur for setting up his enterprises, to encourage employment. There are 2 kinds of subsidies :-
Subsidy by Central Govt
Subsidy by respective state Governments.
Refer This Website for getting details about subsidies. However, here are a few notable points :-
Central Govt has just 1 scheme running for years through which you get 15% investment back (On the machinery value).
This amount should not be more than 15 Lakhs. In other words, projects above 1 Cr of investment in machinery won’t get this subsidy.
This gets deposited into your bank account directly by RTGS, when it’s available & sanctioned.
There are many consultants which may help you to get this. They will charge their professional fees.
Besides the Central, State Govt also float certain subsidy schemes, kindly approach the District Industries Centre (D.I.C.) in your respective state for that. Agencies like De Asra might be of help to you in this.
If you are applying for a subsidy; inform the bank in advance.
Summary of steps before applying for Loan for Mineral Water Plant
Get proper domain knowledge
Decide Which Kind of Project you wish to setup
Calculate your exact need of Finance.
Look for Subsidies
Prepare a project report
Apply to the Bankers
If you have doubts …
You can comment or ask a query in form of comments. Or can shoot a mail to mineralwaterpune@gmail.com or can simply fill a contact form
While looking at the query “Water Purifier Plant Project Cost” ; I tried entering into the query maker’s mind. And concluded that the person more relates to setting up a Mineral Water Plant or a Bottled Water Plant or a Packaged Drinking Water Plant (the way it’s officially called in India).
Let’s look at the basics ..
The basics remain the same; whether you wish to setup a plant in India, or abroad. The basics start from the same things like
What is that you have in mind .. like setting up a “Mineral Water” like the “Himalayan” which costs more than the regular “Packaged Drinking Water” ?
Or you are willing to setup a plant which produces the regular “Packaged Drinking Water” (which is sold at Rs. 20 today)
You may be having land, water ready with you, however, looking to setup a plant on the land you have. And my be willing to know how much will be the cost.
Do you find opportunities if plastic is banned & what will be the alternative to package the bottle ?
Or you might be an entrepreneur who is smart enough to get the water produced at one of the already functional plants & thereby would save the “Water Purifier” Plant Project Cost.
The Costing Fundamentals remain the same
The costing fundamentals remain the same.
The Capital Expenditure (Capex)
The Operational Expenses (Opex)
The ROI (Return on Investment)
As an investor, you would like to have a deeper dive into these principles. Many of these items are covered on the other articles on this website, suggest you to have a look at those like
Also refer the other articles if you find them valuable.
This is all covered at 1 single place
As an investor, or an entrepreneur, do you want to get answers to these questions, comparisons head to head , exact idea on the ROI, need to know the details of what a Water Purifier Plant Project exactly consist of, or can know what will be the future in this “Water” niche ? It is all covered under our Live Training
Want to know more ?
Please write to us at mineralwaterpune@gmail.com to get answer or post comments on this article. Thanks & best luck !
Understand the Opportunity and the Kind of Investment you need
Know the resources required like Water, Land & Building, Machinery, Electricity, Manpower, Money etc. and Choose your Investment Zone.
Select the type of Business you wish to setup : Whether you want to go for a Bottle + Jar Unit or Just Jars or Getting done from a Third Party (Yes, it’s possible !)
Create a Proper Business Plan. This will prepare you exactly for a very successful business. Read more about this here
Make projections through a Project Report & know exactly how much R.O.I. will it provide. If required get help from Organizations like De Asra for this. They help you to get this done at a concessional rate.
Once you are aware of the Total Investment required for a plant, you are clear with how much capital you need to raise. Apply to investors or Bankers for the same, while contributing your own capital as contribution.
Now look for proper Vendors to get the machinery & other resources. You will require several experts here like the Machinery Suppliers, Construction Agencies, Electrical Contractors besides your own employees. Shortlist a few of them.
Now choose suppliers carefully. It is not a bad idea to go for a total Turn-Key project contractor who will organize everything for you & gets your plant running. You can even appoint Consultants; who will work between you and the suppliers. The difference in Turn Key Contractors & Consultants is the Turn Key Contractors work with a single umbrella type pricing; whereas consultants work with individual service charges for consultation, which may not include the machinery or equipment pricing.
Once you get the Loan Amount Disbursement, you should get the project completed in record time. The major hitch here is the B.I.S. License, for which one needs to prepare well from beginning. We suggest you should be always consult for each step you take while starting your Mineral Water Plant. B.I.S. has norms for each of the component, be it partitions or the type of Machinery. Best way is to work with a supplier from start. Take his advice.
Your Mineral Water Plant will start practically when you get a B.I.S. issued ISI mark. Once that is in hand, you are all set to run your Mineral Water Plant.
The Best Way to do this
Attend our Training
We conduct Training Wokshops for the aspirants who wish to setup their ventures in this Industry. It is more focused on creating & Guiding entrepreneur-businessmen willing to start Mineral Water Plant. It has been very well received since 2015. Look at the Training History and the Reviews as well.
